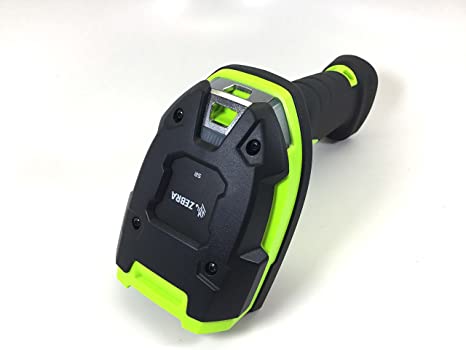

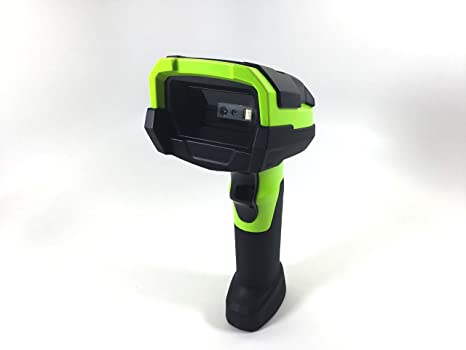

ZEBRA DS3608 SR WIRED SCANNER
Advanced 1D/2D Scanner: Zebra Ds2208 Is An Affordable 1D/2D Imager That Doesn'T Compromise Performance Or Features For Price. Capture Barcodes From Mobile Devices, 1D And 2D Paper Barcodes On Items For Sale, Coupons, Loyalty Cards And More.
General Purpose Use: This Optical Scanner Is Hand Held With An Ergonomic, Lightweight Design. Built To Be Used Reliability All Day Long While Reducing Employee Fatigue Allowing This Scanner To Be Used From Production Lines To Your Point Of Sale.
Built For Your Business: The Offered Zebra Ds2208 Is Built Primarily For Retail And Hospitality Businesses Everywhere, But The Applications Are Endless. Placing This Reliable Tool At Your Point Of Sale Will Ensure Quick Transactions And Keep The Lines Moving..
Easy To Use: Point And Shoot Scanning With Omni-Directional Scanning Means Users Never Need To Line Up The Imager And The Barcode. The Aim Line Guides Users To Scan At The Ideal Distance From The Barcode. This Is Helpful When Capturing Wide Barcodes.
| Dimension: | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D |
|---|---|
| Weight | Corded: 10.8 oz./305 g; Cordless: 14.4 oz./407 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
Operating Current | DS3608-SR (corded): 340 mA (typical) |
| Standby Current | DS3608-SR (corded): 100 mA (typical) |
| Color | Industrial Green | Supported Host Interfaces. | USB, RS232, Keyboard Wedge. |
| Battery | PowerPrecision + 3100 mAh Li-Ion rechargeable battery | User Indicators | Direct decode indicator; LEDs; beeper; vibration |
| Scans per Full Charge: | 70,000+ |
|---|---|
| Illumination | One (1) Hyper Red 660nm LED |
| Imager Field of View | Horizontal: 42, Vertical: 28 | Image Sensor | 1,280 x 800 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll | Skew: + 60; Pitch: + 60; Roll: + 360 | Decode Capabilities | 1D:Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,
GS1 DataBar, Base 32 (Italian Pharma) 2D:PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes. |
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air : Class 1: Up to 300 ft. (100.0 m) Class 2: Up to 30 ft. (10.0 m) |
| Operating Temp | Corded: -22 F to 122 F/-30 C to 50 C Cordless: -4 F to 122 F/-20 C to 50 C |
|---|---|
| Storage Temp | -40 F to 158 F/-40 C to 70 C |
| Humidity | 5% to 95% condensing | Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete. |
| Tumble Specification | 5,000 tumbles @ 3.3 ft. (1 m) |
| Sealing | Scanner: IP65 and IP67; FLB cradle: IP65 | ESD | Per EN61000-4-2, +25 KV air discharge, +10 KV direct discharge, +10 KV indirect discharge |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK |
| LED Safety | International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) |
| Environmental | RoHS EN 50581: 2012 |
