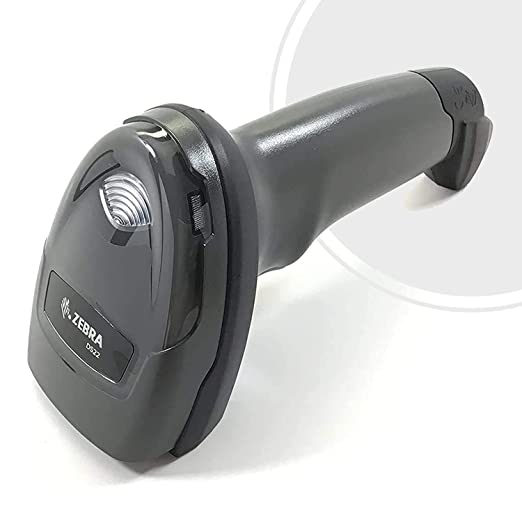

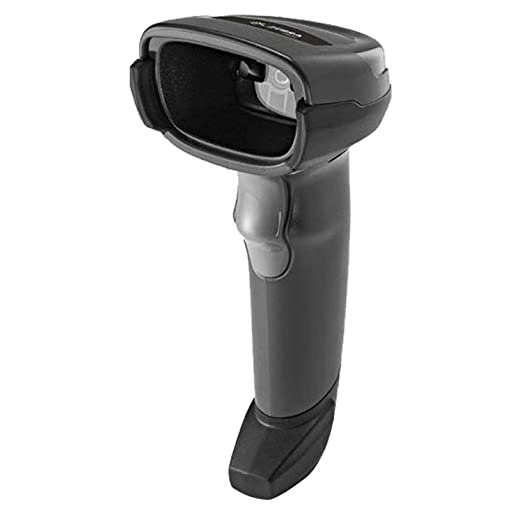

ZEBRA DS2208 SCANNER
The DS2200 Series offers all the features you need to add high-quality scanning to your tablet-based POS. The Micro USB cable provides a low-cost charging alternative to a cradle. And with our simplified app development tools, you can easily configure and update the DS2200 Series right from the tablet.
This complementary software tool is so intuitive that even a first time user can easily set up a DS2200 Series imager. The wizard-driven interface makes it easy to embed all settings into a single programming barcode, enabling you to configure your devices with a single scan.
If you use Zebra's 1D LS2208 scanners today, you can use the same universal cables with the DS2200 Series, allowing you to leverage your existing accessory investment to minimize the cost of upgrading to a 1D/2D imager..
Only from Zebra, PRZM's software decode algorithms for the DS2200 Series deliver superior performance on poor quality barcodes. The result is first-time, every-time scanning to help your workers improve productivity at the checkout counter.
| Dimension: | Corded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm H x 6.6 cm W x 9.9 cm D D Cordless DS2278: 6.9 in. H x 2.6 in. W x 3.5 in. D 17.5 cm H x 6.6 cm W x 9.0 cm D Presentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D |
|---|---|
| Weight | Corded DS2208: 5.7 oz. / 161.6 g Cordless DS2278: 7.5 oz. / 214 g Presentation Cradle: 5.2 oz. / 151 g |
| Input Voltage Range | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply. | Operating Current | DS3608-SR (corded): 340 mA (typical) |
| Standby Current | DS3608-SR (corded): 100 mA (typical) |
| Color | Nova White, Twilight Black | Supported Host Interfaces. | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |

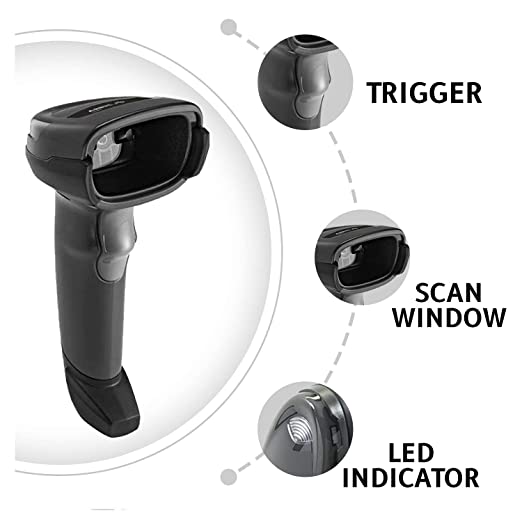

| Keyboard Support | Supports more than 90 international keyboards | User Indicators | Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume) |
| Motion Tolerance (Handheld) | Up to 5 in./13 cm. per second for 13 mil UPC |
|---|---|
| Swipe Speed (Hands-Free) | Up to 30.0 in./76.2 cm. per second for 13 mil UPC |
| Light Source | Aiming Pattern: Linear 624nm Amber LED/td> | Illumination | (2) 645nm Super-Red LEDs |
| Imager Field of View | 32.8 H x 24.8 V Nominal |
| Image Sensor | 640 x 480 pixels | Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll Tolerance | +/- 65; +/- 65; 0-360 |
| Minimum Element Resolution | Code 39 - 4.0 mil; Code 128 - 4.0 mil; Data Matrix - 6.0 mil; QR Code - 6.7 mil |
| Operating Temp | DS2208/DS2278 Imagers:
32.0 to 122.0 F/0.0 to 50.0 C Presentation Cradle: 32.0 to 104.0 F/0.0 to 40.0 C |
|---|---|
| Storage Temp | -40 F to 158 F/-40 C to 70 C |
| Humidity | 5% to 95% condensing | Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1 |
| Sealing | IP65 | Electrostatic Discharge (ESD) | DS2208/DS2278 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107,600 Lux |
| Bluetooth Radio | Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle. |
| Battery Capacity/Battery Type | 2,400 mAh Li-Ion Battery |
